In order to get more control and accuracy in analyzing your results, you can easily create a customized legend.


How to customize legends in FORGE®?

After displaying the result, enable the "Use Custom Legend” option in the legend settings to define or select your own configuration.

FORGE custom legend

The editing function allows you to:

  • Edit the default legend template
  • Set the number of levels
  • Set the minimum and maximum ranges for each interval
  • Assign colors
  • Edit the name
  • Save and sort your legends
  • Select legends in the new drop-down menu

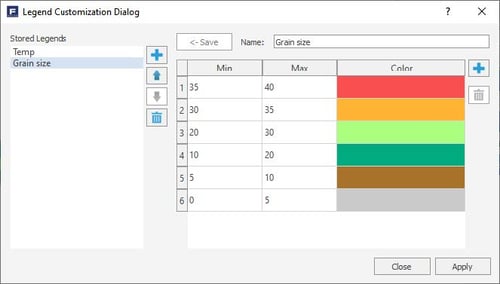

Legend customization dialog
Legend customization panel

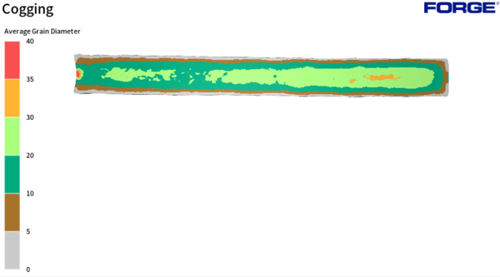

cogging simulationCustomized legend: average grain diameter distribution on a cutting plane


Request a demo

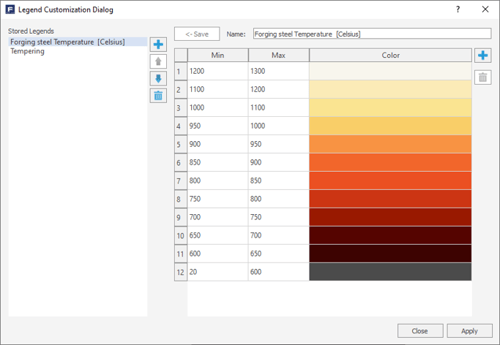

Example of a customized legend for forging applications

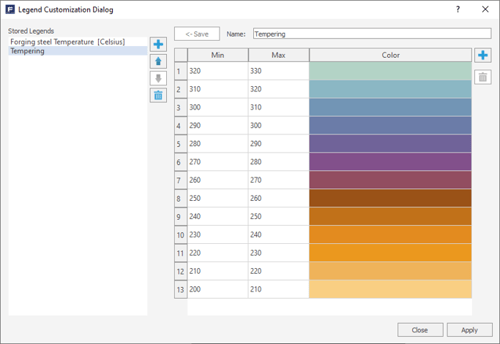

Example of a customized legend for tempering applications
