In today's fast-paced industrial landscape, optimizing manufacturing processes is crucial for businesses to remain competitive. One such process that has gained significant attention for its efficiency and cost-effectiveness is induction heating. This powerful technique utilizes electromagnetic induction to heat electrically-conductive materials, including metals and semi-conductors. In this article, we delve into the world of induction heating, exploring its advantages, simulation capabilities, and how optimization can lead to substantial energy savings.

Induction heating stands out from conventional heating methods due to its unique energy-focused approach. Unlike traditional methods that rely on flames or hot air, induction heating selectively targets the specific area that requires heating. This precision ensures efficient energy application, leading to quick and precise heating with repeatability as a key advantage. Not only does this result in reduced energy wastage, but it also minimizes the risk of altering the material's properties.

FORGE® Simulation: Advancing Induction Heating Efficiency

To achieve optimal results and maximize energy savings, simulation software plays a vital role. One such powerful tool is FORGE®, which couples electromagnetic and thermo-mechanical solvers. Through this coupling, FORGE® can accurately model temperature-dependent electromagnetic parameters and provide periodic updates of the magnetic field during the simulation.

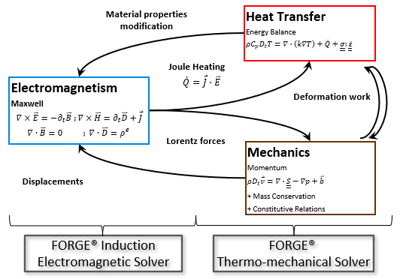

Electromagnetic and thermo-mechanical coupling

By using FORGE®, manufacturers gain valuable insights into the induction heating process, enabling them to fine-tune the variables to achieve the desired outcomes. This capability makes it an indispensable asset for businesses seeking to streamline their manufacturing processes.

HubSpot Video

Temperature evolution during induction heating


The Quest for Energy Savings: Simulation and Optimization

As energy prices continue to rise, industries are constantly seeking ways to minimize energy consumption while maintaining high-quality output. Induction heating optimization has emerged as an effective approach to achieve this delicate balance.

The optimization process involves varying inductor parameters, such as current and frequency, as well as the total process time. The objective is to minimize energy usage while preserving the thermal profile and microstructure of the part. Constraints are incorporated to prevent undesired outcomes, such as full austenization in certain areas, and to limit heat power and maximum temperature.

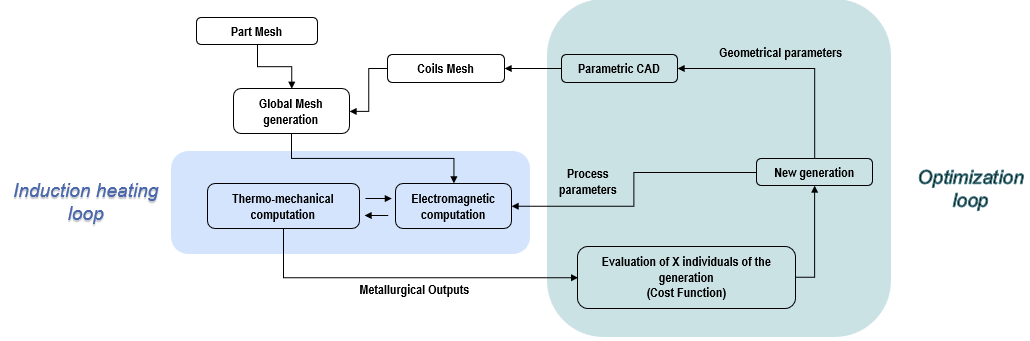

Use of the optimization module in induction heating applications


Unleashing the Power of Simulation: Computational Insights

Running 100 simulations using 8 cores, the optimization process comes to life, with a total computational time of 19 hours and 20 minutes. The metamodel harnesses data from previous simulations to inform the values for new simulations, ensuring an informed decision-making process.

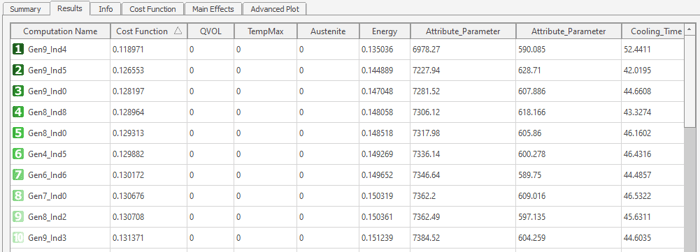

Optimization results

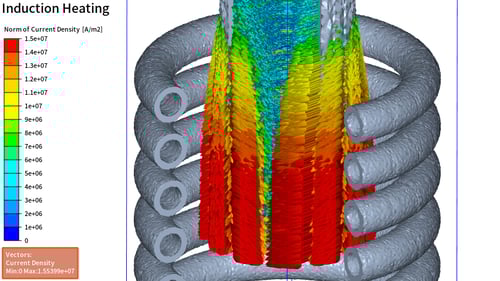

Norm of the current density

The simulation results showcase the significant impact of the optimization efforts. The automatic optimization module achieves an impressive 24% reduction in inductor energy usage, while also slashing the total process time from 60 seconds to 52.4 seconds. Such remarkable gains exemplify the immense potential of simulation-driven optimization in industrial settings.

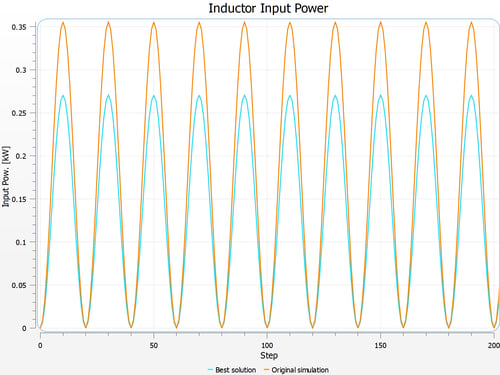

Comparison of the inductor input power between the best individual and the initial simulation

Visualizing Success: The Power of Data

Throughout the simulation process, the software automatically generates various plots that illustrate the impact of each variable on the optimization objective. For instance, it highlights how the inductor current directly influences the energy spent to heat the billet.

Additionally, users gain access to visualize the required thermal properties and microstructure directly, enabling them to validate the effectiveness of the optimization process. Armed with this data-driven approach, manufacturers can confidently make informed decisions to enhance their manufacturing processes.

In conclusion, induction heating, with its precision, repeatability, and cost-effectiveness, has become a go-to process for heating electrically-conductive materials in the manufacturing world. By leveraging powerful simulation software like FORGE®, industries can optimize their induction heating processes, leading to substantial energy savings and improved efficiency. The ability to visualize and fine-tune variables ensures that manufacturers can achieve desired outcomes while preserving the integrity of their products. As businesses continue to face the challenges of rising energy costs, induction heating, coupled with simulation and optimization, remains a game-changer in the quest for efficiency and cost savings.

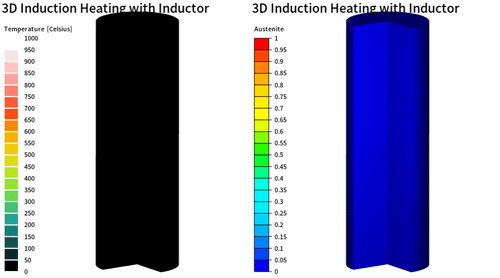

Evolution of temperature and austenite phase for the best individual
