Simulation of induction heating with SIMHEAT®

induction heating simulation FORGEHeating by induction can be analyzed with SIMHEAT® simulation software. This allows determining the optimal process parameters (for example frequency, operation time), as well as the accurate temperature distribution in the initial billet, the equivalent strain distribution (especially in the head and tail of the billet) due to temperature gradient more.



Request a demo



Temperature distribution in 3 standard steel billets headed into a 46 tum coil-box considered is a single turn coil.



Benefits of Predictive simulation

SIMHEAT® allows the prediction of:

  • The temperature distribution in the billet from surface to core
  • The deformation of the billet due to the temperature gradient (particularly at the two ends of the billet)
  • Areas where phase transformations occur
  • Prediction of heat affected zone and metallurgical transformations to identify austenized areas prior to quenching
  • Current frequency, coil geometry and even concentrators’ location within the heat affected zone
  • Electrical and magnetic properties that are temperature-dependent

Induction heat treating of a crankshaft



features of SIMHEAT® for induction heating
  • Multi-physics approach to capture ‘mechanical-electromagnetic-metallurgical’ phenomena.
  • Genuine electro-magnetism resolution predicting finely the heating distribution.

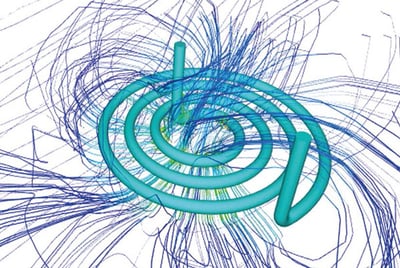

magnetic fields simulation during induction heatingMagnetic fields during induction heating

  • Innovative, dedicated and easy-to-use meshing technology for multi body electro-magnetism resolution.
  • Local mesh adaptation based on the temperature penetration depth.
  • Both static and dynamic induction heating with relative movements between the component and the inductor is handled.
  • Up-to-date modeling of the generators that adjusts current intensity and frequency to maintain prescribed nominal power values.
  • Austenitization as well as grain growth can be considered during the heating phase.
  • With a unique software, induction heating of the initial billet or component as well as forming operations can be simulated.

Discover our solution

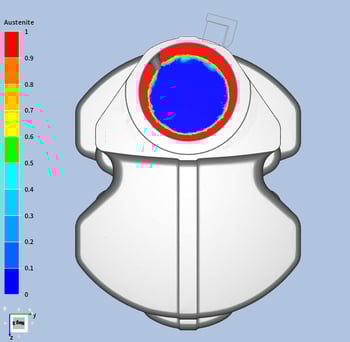

austenite simulation induction heating

Austenite during induction heating



Case study - VALIDATE THE INDUCTION HARDENING SIMULATION PROCESS

induction bearing ringNTN-SNR uses the FORGE® software (which includes the SIMHEAT® module) to simulate the induction hardening process used in manufacturing bearing rings.



Download the case study
